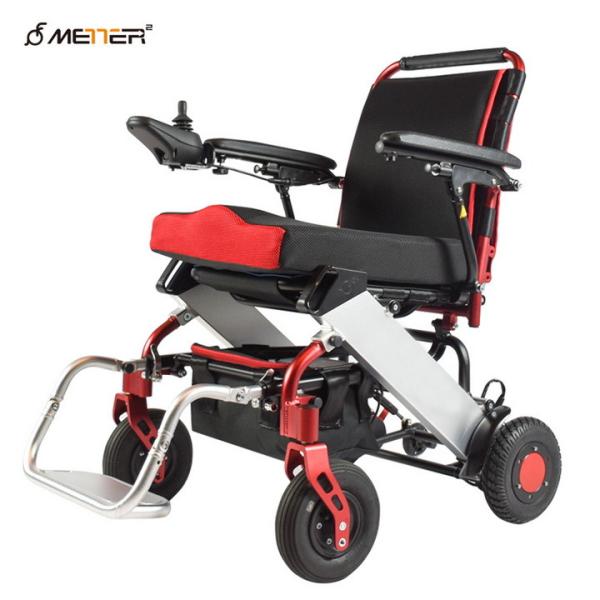

Loading Lightweight Folding Disabled Power Electric Wheelchair
Model:F 308
Description
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Every product must go through a series of rigorous process flow, to ensure the accuracy of product processing.we have created a highly efficient assembly line. Our skilled master assemble delicate accessories into a high quality wheelchair. Each production process,we have professional quality control to make sure the product quality qualified,we have done rigorous test for each performance index.If you want to know more information of our wheelchairs,please feel free to contact us.
The product specifications you cared most
| Net Weight with 1 standard battery pack |
22kg (48.5 lbs) |
| Max Speed |
6 km/hr (3.7 miles/hr) |
| Maximum Seat Capacity |
100kg (220 lbs) |
| Seat Width |
45cm (17.7”) between armrests |
| Seat Depth |
45cm (17.7”) |
| Seat Height From Ground (Front) |
49cm (19.3”) |
| Seat Height From Ground (Back) |
47cm (18.5”) |
| Turning Radius |
75cm (29.5”) |
| Folded Size L X H X W |
37cm x 71cm x 56.5cm (14.6” X 28” X 22”) |
| Opened Size |
93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”) |
| Packing Size |
36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”) |
| Max Distance / Full Charge |
~15km with 1 battery (15% less in cold weather)
~30km with Optional 2nd batttery |
| Charge Time (for 1 battery) |
4.5hours |
| Slope Capability |
10˚ |
| Battery Type |
Soft Pack Polymer Lithium Ion Battery |
| Motor Type |
Latest Brushless Motor |
| Motor Power |
150W x 2 |
| Front Wheel |
7” |
| Rear Wheel |
8” |
| Frame Material |
Quality Aluminium Alloy |
| Rear Tire Type |
Rigid PU tyre |
| Armrest |
Raisable |
| Footrest |
Foldable |
| Backrest |
Foldable |
*Error and uncertainty in measurement
Product Advantage
1. Light Weiht - Frame can be easily lifted. Convenient for transportation and turnover.
2. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.
3. Foldable footrest - Convenient for Up and down the wheelchair.
4. Foldable frame - Convenient for transportation and stock.
5. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.
6. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.
7. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.
8. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.
9. Anti-tip wheel - Anti-tip castor wheels at rear for safe use by customers, especially when crossing obstacles and going up hills to play a good protective role.
Wheelchair Details
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
